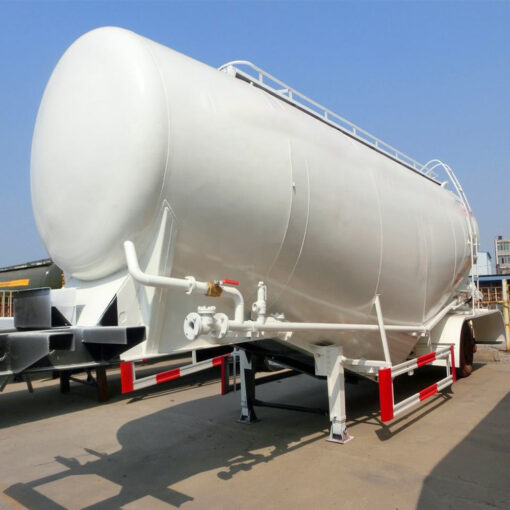

| Type: | Bulk cement tanker semi trailer | |
|
Weight: |
Tare Weight | 9 T |
| Loading capacity | 42 T | |
| Total weight | 51 T | |
| Dimensions: | Dimension | 11000×2500*3800mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 35m3 (35000L) | |
|
Tanker body: |
Design/welding technology | Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes. |
| Tanker body | The tanker body made of 5mm thickness steel | |
| Bottom chassis | High strength Q345B steel | |
| Tanker shape | “V” shape | |
| Silo | 1 silo | |
| Manhole: | 2 pieces, (Diameter is 500mm) | |
| Discharge mouth | 4 inch Discharge mouth | |
| Safety pressure valve | Standard | |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement | |
| Air compressor | 12m3 double-cylinder air compressor, Bohai brand (Chinese famous brand) | |
| Engine | Diesel Engine,Weichai 4102 engine (Chinese famous brand) | |
| Rear ladder and handrail | With, as the photos shows | |
| Retention volume | <0.3% | |
| Axle | 3 axles *square axle with 13 tons capacity, FUWA brand (Chinese best brand) | |
| King Pin | 2.00’’(50#) bolting king pin, JOST brand,German brand,made in China | |
| Suspension | Heavy duty tri-axle suspension with equalizers(high-strength type) | |
| Steel Spring | Six sets of reliable local brand, 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | JOST brand type, manual operation landing legs with sand shoe | |
|
OEM parts: |
Tire specs | 12R22.5, Triangle brand (Chinese famous brand) |
| Rim | 9.00-22.5,(Chinese famous brand) | |
| Number of wheel | 13 pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. |
|
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) |
|
|
Miscellaneous: |
Painting | Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; color advised by client |
| Marking | Standard (Can spray customer LOGO) | |
| Side Guard | Standard | |
| spare wheel carrier | Two set of heavy duty spare wheel carriers, including a riser. | |
| Tools box | One piece (1. 0*0. 5*0. 5m) (equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) |
|
Structural Details
Product advantages
1.Large capacity: It can transport a large amount of powdered materials at one time, such as cement, flour, fly ash and so on. This can significantly reduce the number of transports and improve the transportation efficiency.
2.Fast loading and unloading: It is equipped with an advanced loading and unloading system. The design of its feed inlet and discharge outlet enables rapid feeding and discharging.
3.Good sealing performance: The tank body adopts high-quality sealing materials and precise sealing structures, which can effectively prevent powdered materials from leaking during transportation. This is of crucial importance for some materials that are prone to moisture absorption and contamination, such as fine chemical powders and food-grade powders.
4.Reasonable internal structure: The inner wall of the tank is smooth and may be equipped with a special flow guiding device. This design can reduce the accumulation and residue of powdery materials in the tank. During transportation, the materials can flow smoothly in the tank, avoiding the situation of material caking and ensuring the original state of the materials.
5.Complete safety equipment: The vehicle is equipped with a series of safety devices. For example, there is an emergency cut-off device. In case of an accident, it can quickly cut off the material conveying pipeline to prevent material leakage. There are also anti-lock braking system (ABS), electronic stability control (ESC), etc. These systems can effectively reduce the risk of accidents and ensure driving safety.
Our Factorys
It has a mature manufacturing process and production flow. During the production process, strict quality inspections will be carried out on raw materials, spare parts and the whole vehicle. The powder tank truck undergoes a rigorous tank pressure test to ensure product quality and to make sure that the products meet relevant standards and customer requirements.
