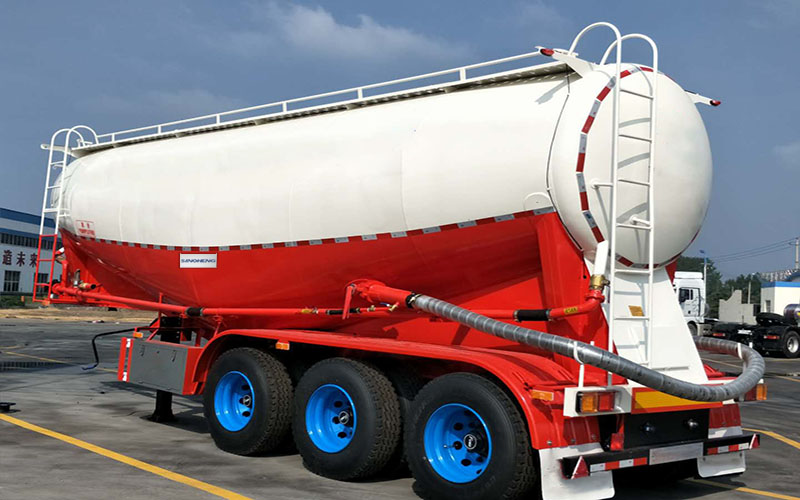

Type		Three axle 35 square powder tank truck
Parameter	Overall Dimension (mm)	Length×width×height:925025003950mm（The height will be adjusted according to the tractor specification）
	Tank thickness	4 mm
	Truck head	5mm
	plate spring	90mm13mm10 pieces
	Tare Weight (kg)	8,000 kg（±5%）
	Payload (kg)	32,000 kg（±5%）
	Gross weight (kg)	40,000 kg（±5%）
Configuration	Tire	Type: 12R22.5, equip 12pcs per chassis, famous brand from China, optioned by factory
	Rim	Type: 9.0-22.5, equip 12pcs per chassis
	Axle	FUWA 13T, 3 sets
	Suspension	enforced mechanical suspension
	Landing Gear	FUWA 28T
	Kingpin	JOST brand 50#or 90#
	Brake System	30/30 type on rear two axles, WABCO brake valve
	ABS	Non
	Electrical System	24V, LED lamp
	spare wheel carrier	Equip 2 set per chassis
	socket	7-port socket
	air compressor	12 cubic meters
	Air chamber	WABCO 6 pairs
	Submarine valve	4 inch
	Manlid	two pieces
	Color	By customer’s requirement.

Structural Details

Product advantages

1.Large capacity: It can transport a large amount of powdered materials at one time, such as cement, flour, fly ash and so on. This can significantly reduce the number of transports and improve the transportation efficiency.

2.Fast loading and unloading: It is equipped with an advanced loading and unloading system. The design of its feed inlet and discharge outlet enables rapid feeding and discharging.

3.Good sealing performance: The tank body adopts high-quality sealing materials and precise sealing structures, which can effectively prevent powdered materials from leaking during transportation. This is of crucial importance for some materials that are prone to moisture absorption and contamination, such as fine chemical powders and food-grade powders.

4.Reasonable internal structure: The inner wall of the tank is smooth and may be equipped with a special flow guiding device. This design can reduce the accumulation and residue of powdery materials in the tank. During transportation, the materials can flow smoothly in the tank, avoiding the situation of material caking and ensuring the original state of the materials.

5.Complete safety equipment: The vehicle is equipped with a series of safety devices. For example, there is an emergency cut-off device. In case of an accident, it can quickly cut off the material conveying pipeline to prevent material leakage. There are also anti-lock braking system (ABS), electronic stability control (ESC), etc. These systems can effectively reduce the risk of accidents and ensure driving safety.

Our Factorys

It has a mature manufacturing process and production flow. During the production process, strict quality inspections will be carried out on raw materials, spare parts and the whole vehicle. The powder tank truck undergoes a rigorous tank pressure test to ensure product quality and to make sure that the products meet relevant standards and customer requirements.

Company Profile

SINOHENG Semi-trailer Factory Division under SINOHENG Group, is a semi trailer factory specializing in the production, R&D and export. The sales department is in Jinan, Shandong, China, and the factory is located in Liangshan, Shandong.

As a global reliable supplier of semi-trailers, the products produced by our factory include dump semi-trailers, special container semi-trailers, flat-bed semi-trailers, box cargo semi-trailers, refrigerated and fresh-keeping semi-trailers, fence semi-trailers, warehouse gates Type semi-trailer, low load-bearing surface semi-trailer, full trailer, vehicle transport semi-trailer, cement tanker semi-trailer, oil, natural gas, liquefied gas tanker semi-trailer, etc. Exported to Africa, Asia, Middle East, South America, Central and North America, Commonwealth of Independent States and other countries and regions, including Congo, Tanzania, Philippines, Thailand, Vietnam, Indonesia, Nigeria, Ethiopia, Saudi Arabia, Kenya, Uganda, Guinea, Zambia, Angola, Tanzania, Zimbabwe, South Africa, Honduras, Cuba, Venezuela, Peru, Argentina, Brazil and many more.
