Tare Weight	About 8T
Dimension	13000mm*2490mm*2860mm (Outer side)
Loading Capacity (T)	30 T
Axle	13 T/16T, FUWA /BPW /Huajing Brand; (optional) Two pieces
Rim	9.00-22.5
Tire	12.00R22.5/ 315 80R22.5
Suspension	Mechanical suspension (Germany Type or America Type)
Spring leaf	90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brandE100T or China brand 28Tons (Double speed)
Main beam	Height: 500mm, upper plate is 14mm, middle plate is 8mm, Down plate is 16mm; Material is Q345B Steel.
Side beam	16mm or 18mm channel steel (Material is Q235steel).
Side Wall	1500mm-1800mm ，the open door can be choose freely. With 300-500mm height square tube or round tube
Bottom Platform	3mm-5mm thickness (According to the capacity which you loading for )
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber（TKL brand）; One piece of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint



structural features

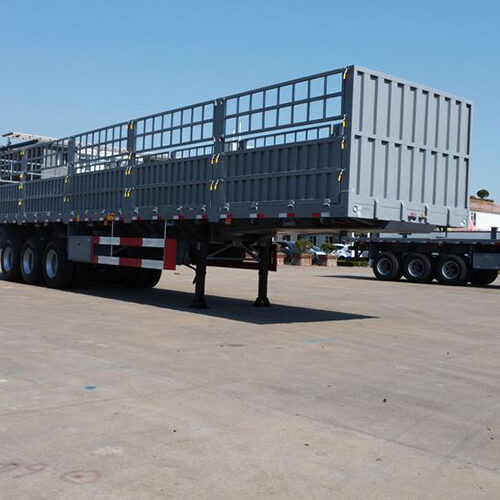

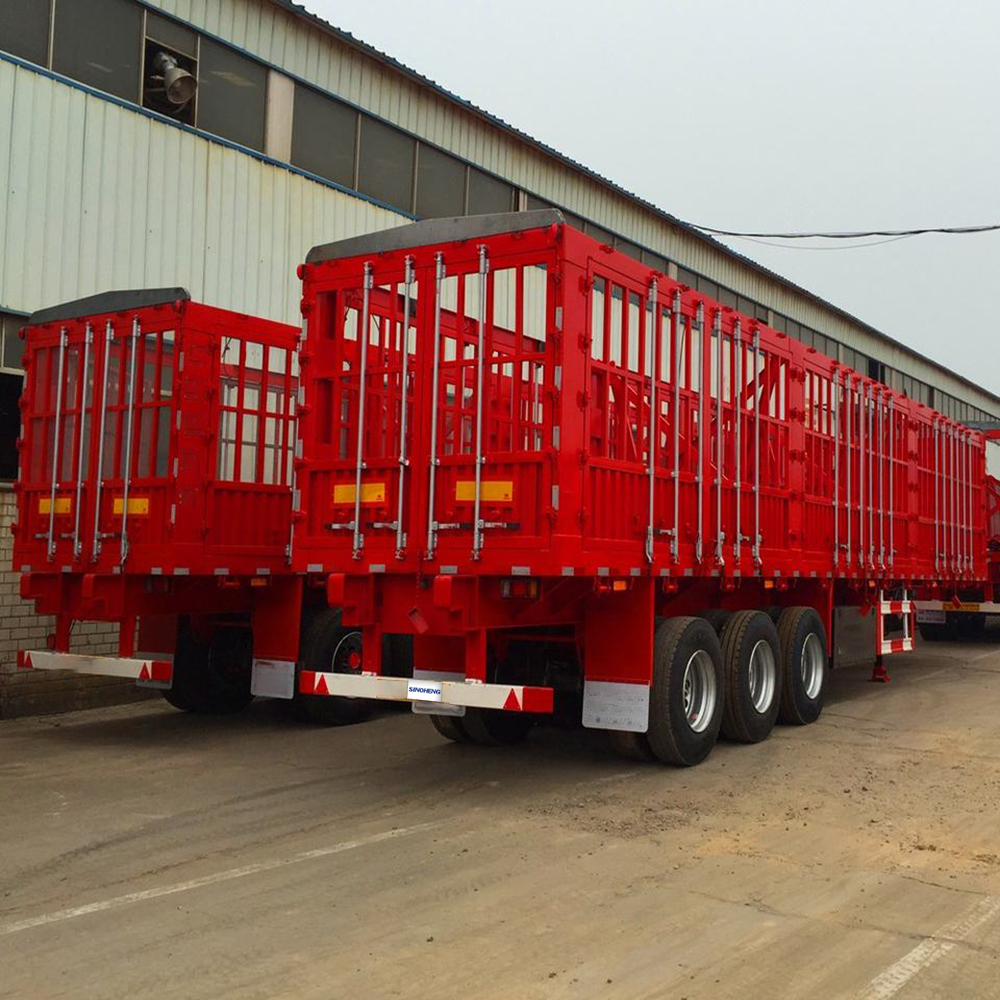

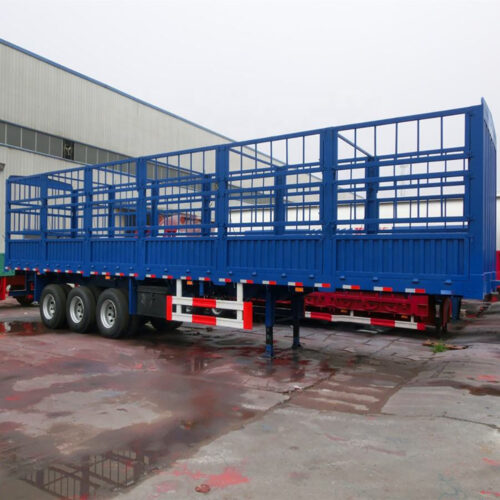

The parameters shown in the pictures are for reference only. Specifically, they can be customized according to customer requirements.

(The parameters shown in the pictures are for reference only. Specifically, they can be customized according to customer requirements.)

1. The vehicle model and fence structure design process are combined with the types of goods of users. With rational design, the weight of the carriage is fully reduced under the condition of meeting the load bearing requirements. The structure is simple and applicable, and it is easy to disassemble, thus reducing the investment cost for users and creating more profit value.

2. Frame: It adopts a space frame structure formed by welding the longitudinal beam and the overall through type cross beam. It can balance the strength, stiffness and toughness of the frame, has a strong load bearing capacity and will not have permanent deformation.

3. The frames of a series of stake sided semi – trailers are all through beam structures. The longitudinal beams are either straight or gooseneck shaped. The height of the web plate ranges from 400 to 500. The longitudinal beams are welded by automatic submerged – arc welding. The frame is shot blasted, and the cross – beams are inserted into the longitudinal beams and welded as a whole.

4. Suspension system: A new type of suspension system is adopted, which has high strength and strong impact resistance. The axle loads of each axle are balanced, and the angles of the system tie rods are rationally designed. During the frequent bumpy operation process, the friction sliding distance between the tires and the ground is reduced, effectively reducing tire wear. At the same time, the adjustable tie rods can adjust the wheelbase and effectively avoid the phenomenon of uneven tire wear and wheel gnawing.



Our Factory



Company Profile

SINOHENG Semi-trailer Factory Division under SINOHENG Group, is a semi trailer factory specializing in the production, R&D and export. The sales department is in Jinan, Shandong, China, and the factory is located in Liangshan, Shandong.

As a global reliable supplier of semi-trailers, the products produced by our factory include dump semi-trailers, special container semi-trailers, flat-bed semi-trailers, box cargo semi-trailers, refrigerated and fresh-keeping semi-trailers, fence semi-trailers, warehouse gates Type semi-trailer, low load-bearing surface semi-trailer, full trailer, vehicle transport semi-trailer, cement tanker semi-trailer, oil, natural gas, liquefied gas tanker semi-trailer, etc. Exported to Africa, Asia, Middle East, South America, Central and North America, Commonwealth of Independent States and other countries and regions, including Congo, Tanzania, Philippines, Thailand, Vietnam, Indonesia, Nigeria, Ethiopia, Saudi Arabia, Kenya, Uganda, Guinea, Zambia, Angola, Tanzania, Zimbabwe, South Africa, Honduras, Cuba, Venezuela, Peru, Argentina, Brazil and many more.
