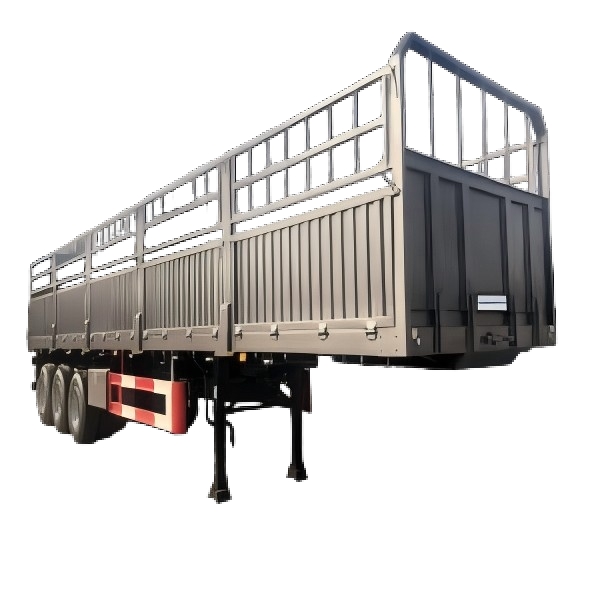

| Type | Storehouse semi-trailer | |
| Parameter
|
Overall Dimension (mm) | Length×width×height:13000*2500 (fence height 1600 / 1800 / 2000 / 2200mm) |
| Main Beam | Material: Q345 Carbon Steel.
Beam height: 500mm. Upper plate: 14mm, down: 16mm, middle: 6/8 mm |
|
| plate spring | 90mm*13mm*10 pieces,6/8 sets | |
| Tare Weight (kg) | 7,500 kg（±5%） | |
| Payload (kg) | 70,000 kg（±5%） | |
| Gross weight (kg) | 40,000 kg（±5%） | |
| Tire | Type: 12R22.5, equip 12pcs per chassis, famous brand from China, optioned by factory | |
| Configuration | Rim | Type: 9.0-22.5, equip 12pcs per chassis |
| Axle | 13T, 1-4 pcs, | |
| Suspension | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) | |
| Landing Gear | Standard 28Ton, JOST or FUWA etc. | |
| Kingpin | JOST brand 50#or 90# | |
| Brake system | WABCO available. 4 sets T30/30+2 sets T30 chamber; Two 40L tanks, ABS Optional | |
| Electrical system | 1. Voltage:24V， LED lights
2. Tail light, brake light & reflector, side lamp etc. 3.Receotacle:7 ways (7 wire harness) |
|
| Tool box | 1 set,1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) | |
| side beam | 14#/16# channel steel | |
| Spare tire carrier | 1set | |
| spin lock | Non | |
| Cross member | 8#/10# channel steel | |
| Platform | 3mm checker Plate or flatbed | |
| Side wall height | 600mm/800mm/1000mm etc. | |
| Front board | 1500mm | |
| Traction Pin | 2″(50mm) or 3.5″(90mm) | |
| Color | optional | |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints | |
| other | Can add Mid & Rear Side protection, 24 pcs D-rings, need 11 or 13 doors at the side wall, tarpaulin & tarpaulin carrier | |
structural features
The parameters shown in the pictures are for reference only. Specifically, they can be customized according to customer requirements.
(The parameters shown in the pictures are for reference only. Specifically, they can be customized according to customer requirements.)
1. The vehicle model and fence structure design process are combined with the types of goods of users. With rational design, the weight of the carriage is fully reduced under the condition of meeting the load bearing requirements. The structure is simple and applicable, and it is easy to disassemble, thus reducing the investment cost for users and creating more profit value.
2. Frame: It adopts a space frame structure formed by welding the longitudinal beam and the overall through type cross beam. It can balance the strength, stiffness and toughness of the frame, has a strong load bearing capacity and will not have permanent deformation.
3. The frames of a series of stake sided semi – trailers are all through beam structures. The longitudinal beams are either straight or gooseneck shaped. The height of the web plate ranges from 400 to 500. The longitudinal beams are welded by automatic submerged – arc welding. The frame is shot blasted, and the cross – beams are inserted into the longitudinal beams and welded as a whole.
4. Suspension system: A new type of suspension system is adopted, which has high strength and strong impact resistance. The axle loads of each axle are balanced, and the angles of the system tie rods are rationally designed. During the frequent bumpy operation process, the friction sliding distance between the tires and the ground is reduced, effectively reducing tire wear. At the same time, the adjustable tie rods can adjust the wheelbase and effectively avoid the phenomenon of uneven tire wear and wheel gnawing.
