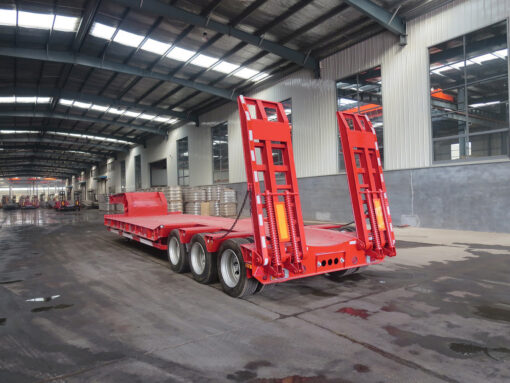

| Type | Low-bed semi-trailer |
| Overall Dimension (mm) | Length×width×height:12990,12500×3000×3100,2900,1750 |
| Total weight (Kg) : | 35000 |
| Approach Angle/Departure Angle: | -/30 |
| Front/rear suspension (mm) : | -/1050 |
| Wheelbase (mm) : | 8600+1170+1170 |
| Axle Load: | -/21000(three axes) |
| number of axles： | 3 |
| Number of spring pieces: | -/4/4/4,-/8/8/8,-/10/10/10 |
| Number of tires: | 12 |
| Tire Specifications: | 8.25R20 12PR,8.25R16LT 16PR,235/75R17.5 16PR |
| Front wheel base: | / |
| Rear wheel base: | 2330/2330/2330,2250/2250/2250,2180/2180/2180 |

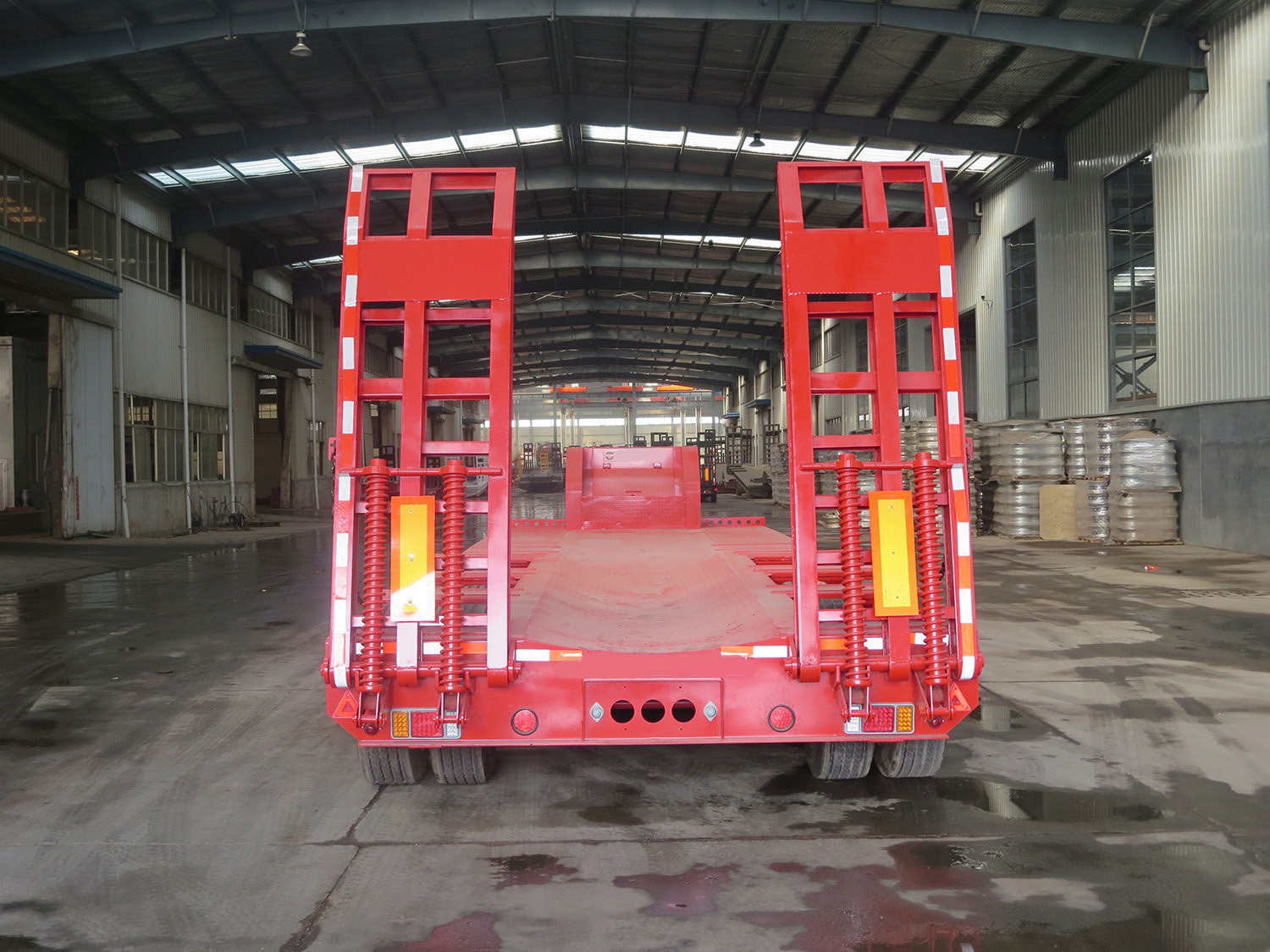

| Others: | The bearing surface of the cargo platform is 850mm and 980mm above the ground. It is only used for transporting non-removable objects. The ladder of this model is optional, and the total height is 1750mm when it is optional without a ladder. The rear spring power ladder can be optional: single spring, double spring. Body reflective signage has been installed on the sides and rear. Rear structure ground height :500mm.ABS system model :HNABS4S/4M,ABS Optional hydraulic ladder and tail style; Select the slope style, rounded corner style and right Angle style at the back of the gooseneck; Optional gooseneck on both sides of the half small platform, the whole small platform, and the small platform frame type, bottom plate; Optional platform extension and no legs at the lower part of the gooseneck, optional lower arc, half lower arc and no arc between the longitudinal beams; Optional wooden flooring; Optional loading platform flat style and middle part concave style; Optional exposed and closed tires; Optional frame type and bottom plate for tire platform; The above optional parts and optional styles can be selected at will. |
Structural Details
1.Reasonable structural design,low center of gravity,long vehicle and more loading.
2.Single axle/double axle/three axle, single tire /double tire,different length and different tonnage.
3.Loading 40 foot /45 foot /48 foot boxes,providing a variety of options and configurations for customers to choose from.
4.Reliable and durable,preferred materials,reliable quality and long service life.
5.We have advanced testing equipment : Components,hardness,and phase of metal are analyzed to ensure the standards of processed material and the quality of finished products.
More Models
Providing a variety of options and configurations for customers to choose from.
Company Profile
SINOHENG Semi-trailer Factory Division under SINOHENG Group, is a semi trailer factory specializing in the production, R&D and export. The sales department is in Jinan, Shandong, China, and the factory is located in Liangshan, Shandong.
As a global reliable supplier of semi-trailers, the products produced by our factory include dump semi-trailers, special container semi-trailers, flat-bed semi-trailers, box cargo semi-trailers, refrigerated and fresh-keeping semi-trailers, fence semi-trailers, warehouse gates Type semi-trailer, low load-bearing surface semi-trailer, full trailer, vehicle transport semi-trailer, cement tanker semi-trailer, oil, natural gas, liquefied gas tanker semi-trailer, etc. Exported to Africa, Asia, Middle East, South America, Central and North America, Commonwealth of Independent States and other countries and regions, including Congo, Tanzania, Philippines, Thailand, Vietnam, Indonesia, Nigeria, Ethiopia, Saudi Arabia, Kenya, Uganda, Guinea, Zambia, Angola, Tanzania, Zimbabwe, South Africa, Honduras, Cuba, Venezuela, Peru, Argentina, Brazil and many more.
