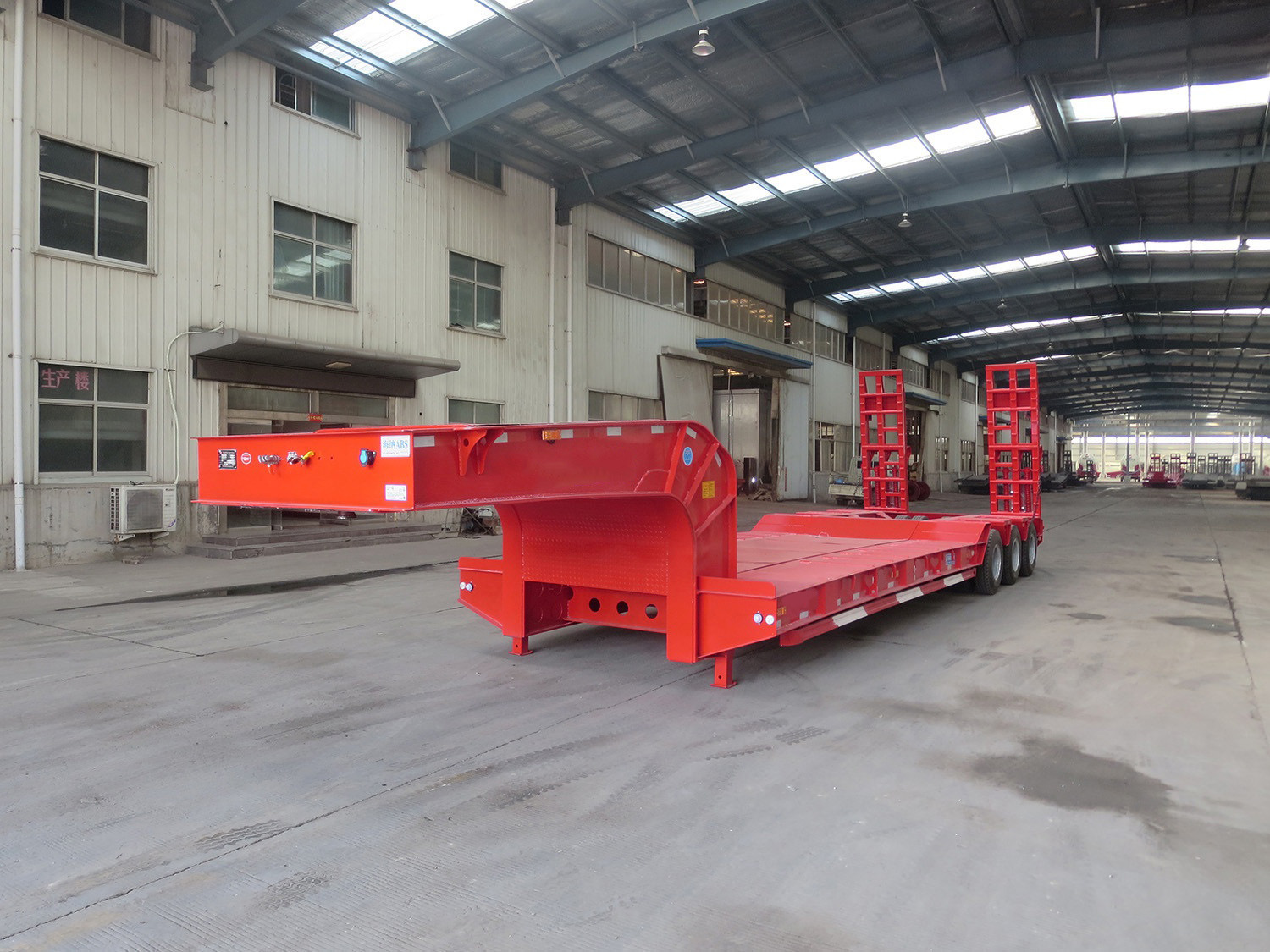

| Type | Low-bed semi-trailer |
| Overall Dimension (mm) | Length×width×height:13750,13000,12500×3000×1800,3100,3300,3500 |
| Total weight (Kg) : | 38000 |
| Approach Angle/Departure Angle: | -/28 |
| Front/rear suspension (mm) : | -/1100 |
| Wheelbase (mm) : | 8450+1220+1220 |
| Axle Load: | -/7000/7000/7000(three lines and six axles) |
| number of axles： | Three-wire six-axis |
| Number of spring pieces: | -/-/-/- |
| Number of tires: | 24 |
| Tire Specifications: | 8.25R16LT 6PR |
| Front wheel base: | / |
| Rear wheel base: | 2480/2480/2480 |
| Others: | The height of the cargo platform bearing surface from the ground is 750mm, 800mm, 930mm, 950mm, which is only used for transporting non-removable objects. The total height without climbing ladders is 1800mm. The installation position of the tail marking board when not climbing ladders is optional, and the external dimensions are long/semi-trailer traction pin to the front end of the vehicle distance/wheelbase/rear suspension. The corresponding relationship is: 13750/1760/8450 + 1220 + 1220/1100; 13000/1010/8450 + 1220 + 1220/1100; 12500/510/8450 + 1220 + 1220/1100. The body reflective logo has been installed on the side and rear. Side protection material: Q235B, connection method: bolt. The body parts replace the rear lower protection, and the rear structure is off the ground: 400mm. ABS system model: HNABS4S/4M, ABS system manufacturer: Liangshan Haina Electronic Technology Development Co., Ltd |
Structural Details
1.Reasonable structural design,low center of gravity,long vehicle and more loading.
2.Single axle/double axle/three axle, single tire /double tire,different length and different tonnage.
3.Loading 40 foot /45 foot /48 foot boxes,providing a variety of options and configurations for customers to choose from.
4.Reliable and durable,preferred materials,reliable quality and long service life.
5.We have advanced testing equipment : Components,hardness,and phase of metal are analyzed to ensure the standards of processed material and the quality of finished products.
More Models
Providing a variety of options and configurations for customers to choose from.
Company Profile
SINOHENG Semi-trailer Factory Division under SINOHENG Group, is a semi trailer factory specializing in the production, R&D and export. The sales department is in Jinan, Shandong, China, and the factory is located in Liangshan, Shandong.
As a global reliable supplier of semi-trailers, the products produced by our factory include dump semi-trailers, special container semi-trailers, flat-bed semi-trailers, box cargo semi-trailers, refrigerated and fresh-keeping semi-trailers, fence semi-trailers, warehouse gates Type semi-trailer, low load-bearing surface semi-trailer, full trailer, vehicle transport semi-trailer, cement tanker semi-trailer, oil, natural gas, liquefied gas tanker semi-trailer, etc. Exported to Africa, Asia, Middle East, South America, Central and North America, Commonwealth of Independent States and other countries and regions, including Congo, Tanzania, Philippines, Thailand, Vietnam, Indonesia, Nigeria, Ethiopia, Saudi Arabia, Kenya, Uganda, Guinea, Zambia, Angola, Tanzania, Zimbabwe, South Africa, Honduras, Cuba, Venezuela, Peru, Argentina, Brazil and many more.
Our Factory
