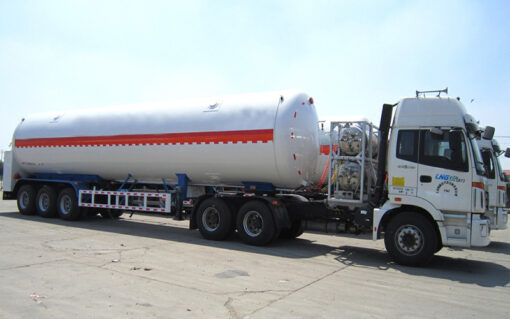

LNG Cryogenic Liquid Storage Tank truck

Send Inquiry

Tank body	Aluminum Alloy 5083/5182/5454
End plate	Q235/6mm steel sheet
Discharge valve	4 inch disc valve
Discharge pipe	4 inch seamless steel tube
Manhole cover	500mm manhole cover . 3 sets with 3 breather valve.
Compartment	3 pieces,14+13+13
Emergency valve	3 pieces
Ladder	1 piece, in the back of the tanker body
Axle		3 axles, FUWA brand axles 13 ton
Leaf spring		Leaf spring 10 pieces
Kingpin		50mm
Landing gear		two-speed, manual operating ,heavy duty landing gear
Tire		Triangle brand 12R22.5 12+1 spare tire
Rim		9.0-22.5 12+1 spare rim
Suspension		Mechanical suspension
Leaf spring		10/10/10 90mm width and 13mm thickness
Brake Chamber		Six double big brake chamber
Spare tire carrier		2 units
Emergency valve		RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks
Tail lights		LED type
Voltage		24V
Receptacle		7ways (7 wire harness)
Fender		2 pieces, light steel, left+right
Tool box		1 piece, 1m x 0.5m x 0.5m,with some small gadgets
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Color		White color
