Basic Info.
| Power | Diesel |
| Load Capacity | 31-40t |
| Emission Standard | Euro 5 |
| Tank Volume | ＞30000L |
| Drive Wheel | 2-Axles |
| Seats | ≤5 |
| Horsepower | 351-450hp |
| Engine Capacity | 6-8L |
| Storage | Oil |
| Tire Certification | ECE, GCC, ISO, DOT |
| Tire Design | Tubeless |
| Specification | 10600 * 2490 * 3750 (mm) |
| HS Code | 8704230090 |
Product Parameters
| Vehicle Description | ||
| Overall dimension | 10600 * 2490 * 3750mm | |
| GVW | 35000kg | |
| Curb weight | 8200kg | |
| Axles | FUWA 13T*2 sets | |
| Suspension | Mechanical | |
| King Pin | 90# or 50# traction pin | |
| Landing leg | JOST, or other brand | |
| Tire specification | 11.00R20 12PR | |
| Tire quantity | 4pcs | |
| Tanker Descrition | ||
| Tanker capacity | 30-40cbm | |
| Tanker material | Aluminum Alloy | |
| Thickness | Tanker body | 5mm |
| End cover | 6mm | |
| Tanker shape | Square, goose neck model | |
| Tanker compartment | 1 compartments (optional: several compartment) | |
| Standard description | Equipped with 2 set manhole; | |

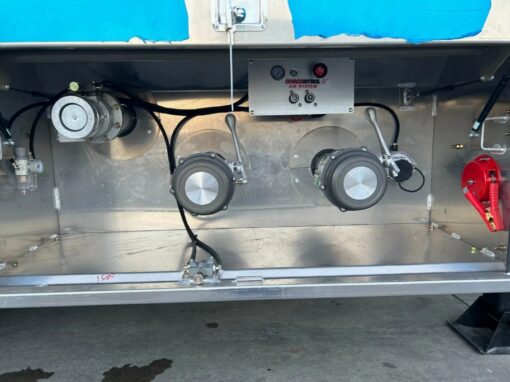

| Equipped with double discharge valve and valve box; | ||
| Equipped with ladder, roof coaming, skid resistant walkway, and toolbox; | ||
| Electrostatic conducting tape and double fire extinguishers. | ||
Structural Details

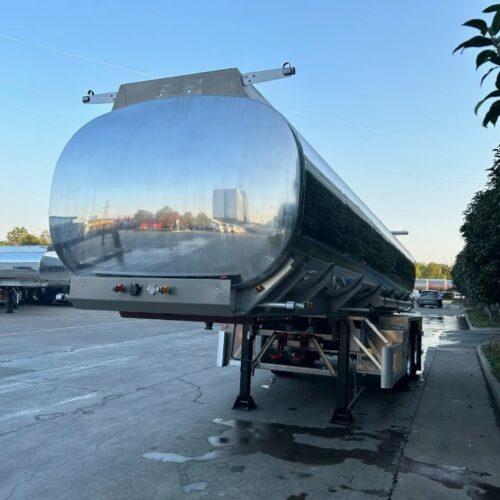

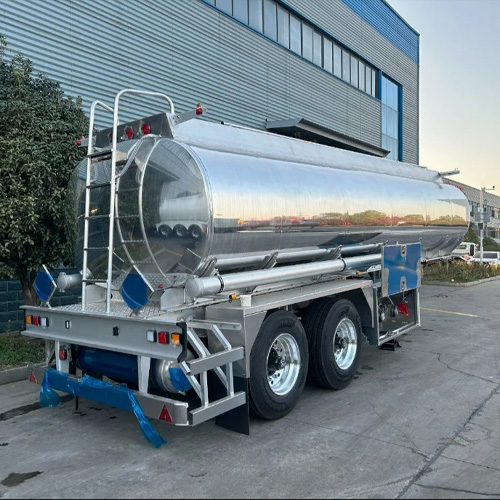

A semi-trailer tanker is a type of tanker truck in which the towing head is connected to the trailer part. Compared with ordinary single-unit tanker trucks, semi-trailer tankers can effectively improve transportation efficiency when transporting oil. Under the condition of the same tonnage, it can reduce transportation costs and save fuel consumption. It is mainly composed of the tank body, vehicle frame, traction device, supporting device, electrical system, running system, protective device, accessories and so on.
Semi-trailer tankers are divided into two parts: the oil tank part and the skeleton that supports the tank body, also known as the running part. The rear parts of semi-trailer tankers are generally the same, but they can be classified into two types: those with double rear axles (two axles) and those with triple rear axles (three axles). The towing head can be selected according to specific needs. Usually, semi-trailer tankers are named according to the brand of the towing head.
Products Advantage
Vehicle design and chassis
The special bottom of the dangerous chemical stank transport vehicle is adopted. The design ofthe whole vehicle is based on the tank volume chassis wheelbase, power, load capacity, safety lightweight, environmental protection and energy conservation, so as to give better play to the characteristics of the special vehicle.
Safety accessories
The safety accessories of the tank body are independently developed and manufactured by specialized Company, and have passed the national mandatory Certification, and integration of tank carand aftermarket service of accessories, providing pre-sale, in sale and in sale services The latter three levels of service will enable you to purchase and use the car without worry
Beautiful paint surface
The tank body and accessories shall be shot blasted, sprayed with polymer primer and finish paint Strong adhesion, good corrosion resistance,uniform paint film, bright and lasting color.
Special customization
Provide a reasonable personalized customization scheme,strengthen its functions on the original basis, design and produce according to customers’ actual use needs, and provide high-quality services.
Our Factory
Company Profile
SINOHENG Semi-trailer Factory Division under SINOHENG Group, is a semi trailer factory specializing in the production, R&D and export. The sales department is in Jinan, Shandong, China, and the factory is located in Liangshan, Shandong.
As a global reliable supplier of semi-trailers, the products produced by our factory include dump semi-trailers, special container semi-trailers, flat-bed semi-trailers, box cargo semi-trailers, refrigerated and fresh-keeping semi-trailers, fence semi-trailers, warehouse gates Type semi-trailer, low load-bearing surface semi-trailer, full trailer, vehicle transport semi-trailer, cement tanker semi-trailer, oil, natural gas, liquefied gas tanker semi-trailer, etc. Exported to Africa, Asia, Middle East, South America, Central and North America, Commonwealth of Independent States and other countries and regions, including Congo, Tanzania, Philippines, Thailand, Vietnam, Indonesia, Nigeria, Ethiopia, Saudi Arabia, Kenya, Uganda, Guinea, Zambia, Angola, Tanzania, Zimbabwe, South Africa, Honduras, Cuba, Venezuela, Peru, Argentina, Brazil and many more.
