| Overall Dimension(L*W*H) | 13750*2550*4000mm (size can be chose freely) |
| Tare Weight | 7000KG |
| Loading Weight | 60000KG |
| Axle | 13T 2/3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand |
| Leaf Spring | 90*13-10 4/6/8 sets, Funiu or Taiyue or other china brand |
| Suspension system | Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Main Beam | The height of the beam is 500mm,upper plate 14mm,down plate is 16mm,middle plate is 6/8 mm, Material is Q345 Carbon Steel |
| Platform plate | 3-5mm checker Plate or flatbed |
| Box Height | Depends on the buyer’s requirement. |
| Tire Type and quantity | 12R22.5-18 12units |
| Steel Rim | 9.00-22.5 12Units |
| Tool Box | 1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar) |
| Twist locks | 4 / 8 / 12 pcs |
| Traction Pin | 2″(50mm)or3.5″(90mm) |
| Spare Wheel Bracket | 1 piece |
| Landing Gear | Standard 28Ton, JOST brand or FUWA brand or other china brand. |
| Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks， ABS Optional upon choice |
| Electrical system | 1. Voltage:24V，7core socket ，LED lights
2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3.Receotacle:7 ways (7 wire harness) |
| Color and Logo | As the customer request |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints |
| other | Can add Mid & Rear Side protection, Hydraulic system |
Product Advantages

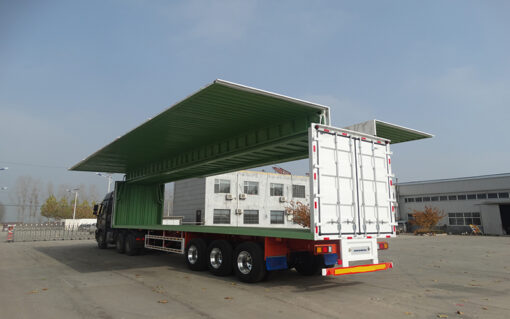

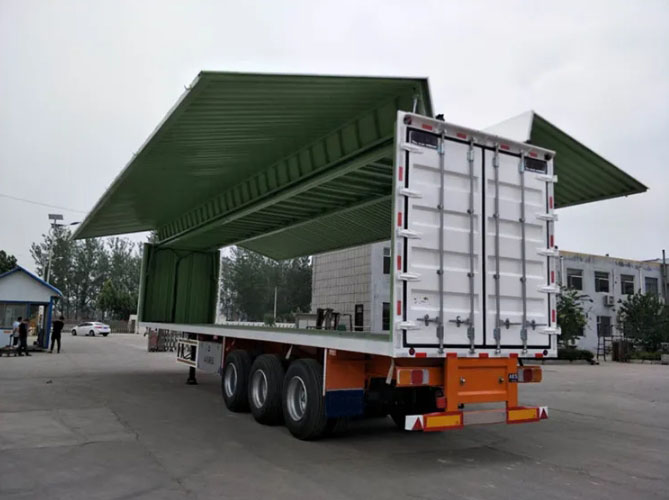

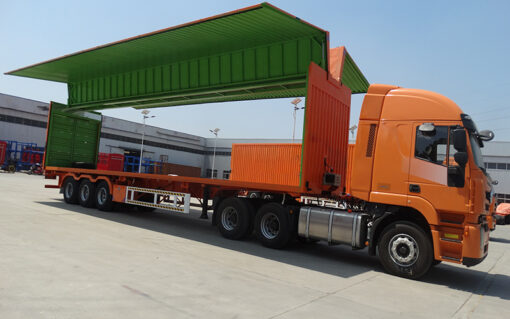

The wing panels on both sides of the compartment body of a wingspan semi-trailer can be opened by an electric hydraulic lifting device. Loading and unloading equipment such as forklifts can directly load and unload goods from both sides, greatly shortening the loading and unloading time and improving the efficiency of logistics turnover.
There are sealing strips installed between the vertical frames of the side panels of the compartment and the columns, as well as between the wing panels and the front and rear panels. There is a rainproof tarpaulin riveted to the top sheet, realizing the sealing of the entire compartment. It has properties such as rainproof, dustproof, and environmental protection. It can effectively ensure the quality and safety of goods during transportation, avoid pollution and damage to goods from rainwater and dust, and also play a certain anti-theft role.
The side panels of the semi-open wing-opening compartment are partially constructed with rectangular tube structures. The inner and outer sides are riveted with skins, providing high strength and rigidity, which can effectively prevent the impact of goods. When the goods do not exceed the height of the side panels, this vehicle can also be used as an ordinary truck, realizing the diversification of transported goods and improving the utilization rate of the vehicle.

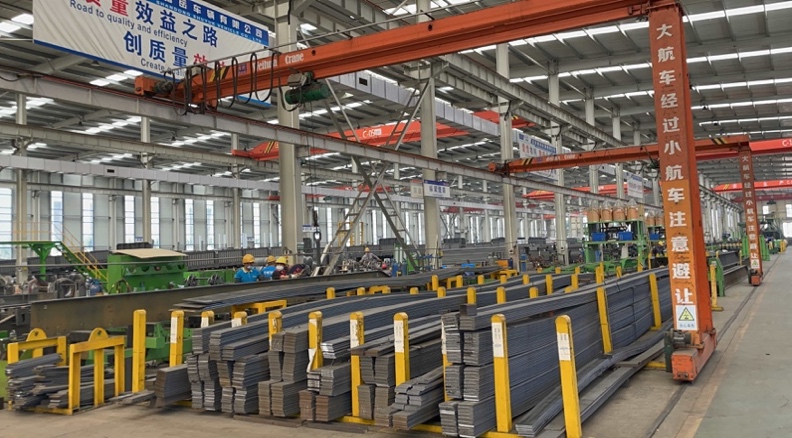

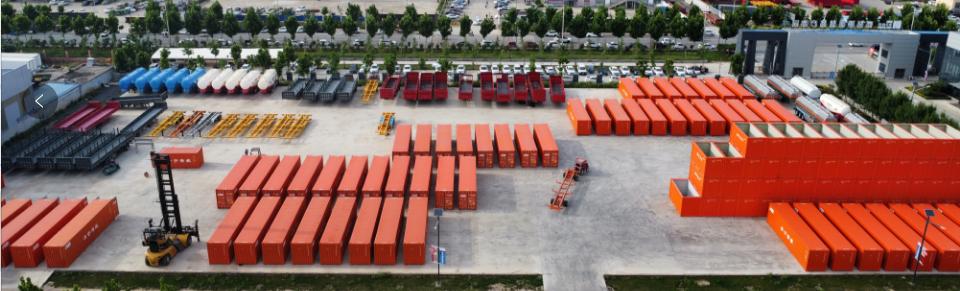

Our Factory
Company Profile
SINOHENG Semi-trailer Factory Division under SINOHENG Group, is a semi trailer factory specializing in the production, R&D and export. The sales department is in Jinan, Shandong, China, and the factory is located in Liangshan, Shandong.

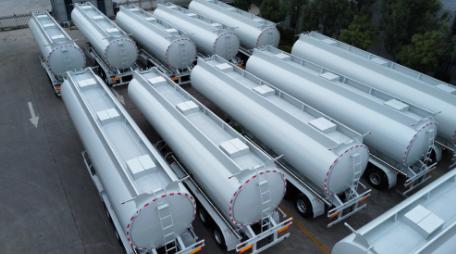

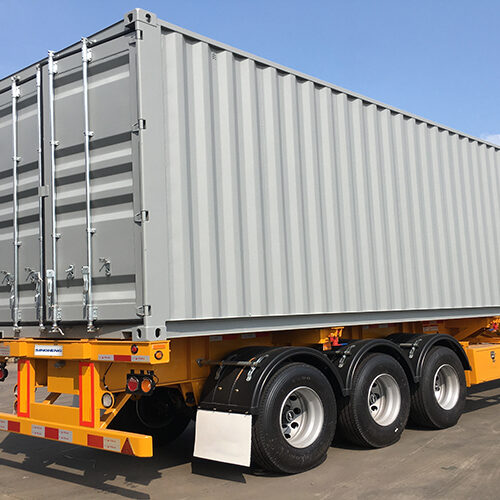

As a global reliable supplier of semi-trailers, the products produced by our factory include dump semi-trailers, special container semi-trailers, flat-bed semi-trailers, box cargo semi-trailers, refrigerated and fresh-keeping semi-trailers, fence semi-trailers, warehouse gates Type semi-trailer, low load-bearing surface semi-trailer, full trailer, vehicle transport semi-trailer, cement tanker semi-trailer, oil, natural gas, liquefied gas tanker semi-trailer, etc. Exported to Africa, Asia, Middle East, South America, Central and North America, Commonwealth of Independent States and other countries and regions, including Congo, Tanzania, Philippines, Thailand, Vietnam, Indonesia, Nigeria, Ethiopia, Saudi Arabia, Kenya, Uganda, Guinea, Zambia, Angola, Tanzania, Zimbabwe, South Africa, Honduras, Cuba, Venezuela, Peru, Argentina, Brazil and many more.
